FQ32PT Miniature Pressure and Temperature Sensor
Compact OEM sensor combining a 0.5–4.5 V pressure output and embedded NTC temperature measurement, with ranges up to 1,000 bar.
The FQ32PT combines pressure and temperature measurement in a miniature stainless steel package for space-constrained OEM equipment, laboratory systems, and compact unmanned platforms. Two confirmed metric thread options support mechanical integration, while the four-wire configuration carries 0.5–4.5 V pressure and NTC temperature channels. The supplier confirms a 5–15 VDC sample supply and range-specific overload and burst ratings for 250–1,000 bar configurations. Transfer behavior above 5 V, final production pinout, and wire colors remain order-specific confirmation items.

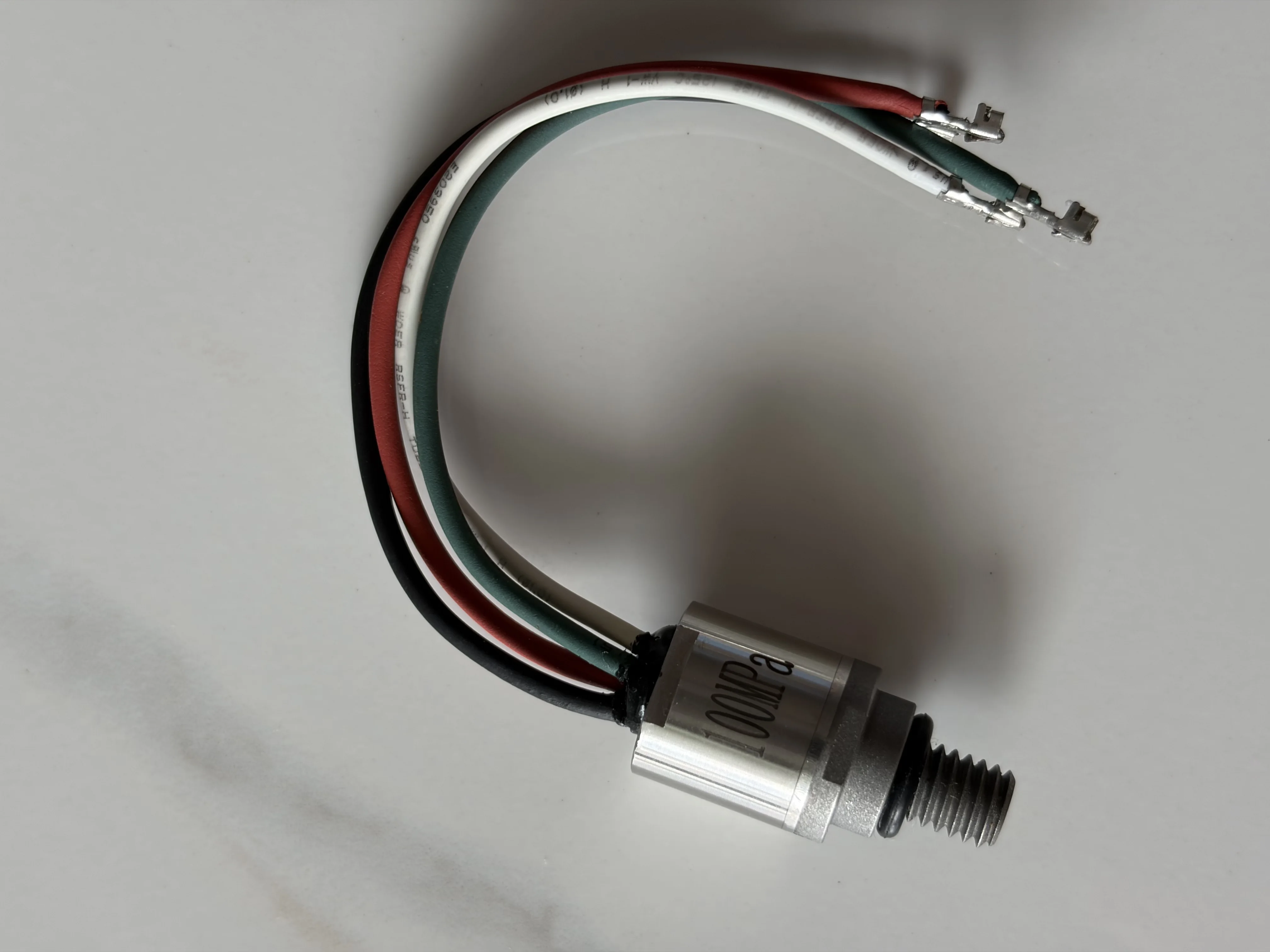

FQ32PT 100 MPa (1,000 bar) sample with compact threaded body and O-ring seal.
Performance
- Accuracy
- ±0.5% BFSL max
- Pressure Cycles
- >100 million full-scale cycles
Range
- Min Range
- 0–2 bar / 0–25 psi
- Max Range
- 0–1,000 bar / 0–15,000 psi
- Overrange
- Confirmed bar ranges — 250 bar: 500 bar; 500 bar: 900 bar; 750 bar: 1,000 bar; 1,000 bar: 1,100 bar. Other ranges: confirm per order.
Environmental
- Operating Temp
- -40 to 85°C
- Protection
- IP66
- EMC
- Protected
Mechanical
- Shock
- 100 g, 11 msec, ½ sine
- Vibration
- 10 g peak, 20–2,000 Hz
- Technology
- Miniature pressure sensor with embedded 10 kΩ B3950 NTC
- ✓Miniature package for space-constrained OEM integration
- ✓Combined pressure and embedded temperature measurement
- ✓Confirmed maximum pressure range of 1,000 bar
- ✓M6×1 and M8×1 male thread options
- ✓Operating temperature from −40 to 85°C
- ✓5–15 VDC wide-input supply
- ✓10 kΩ, B3950 NTC temperature element
- ✓O-ring sealing structure
- ✓EMI/RFI protection for compact electronic systems
The configuration code is a preliminary reference. Final range and unit compatibility, wiring, documentation, and availability are confirmed in the quotation.
Full Specifications
0.5–4.5 V pressure + 10 kΩ B3950 NTC temperature
Compact Equipment & Laboratory
Miniature combined pressure and temperature sensing for civil unmanned aerial systems, laboratory instrumentation, and compact equipment.
