FQ3100 General-Purpose Stainless Steel Pressure Transducer
Compact stainless steel pressure transducer for industrial OEM, fluid power, water systems, and general process applications.
The FQ3100 uses a monolithic stainless steel sensing element for long-term pressure measurement performance. Its compact form factor, rugged construction, and multiple pressure-port and electrical-output options support OEM integration and general industrial applications. The sensing structure is oil-free, weld-free, and O-ring-free. Wetted-material compatibility must be confirmed for each medium and operating condition.

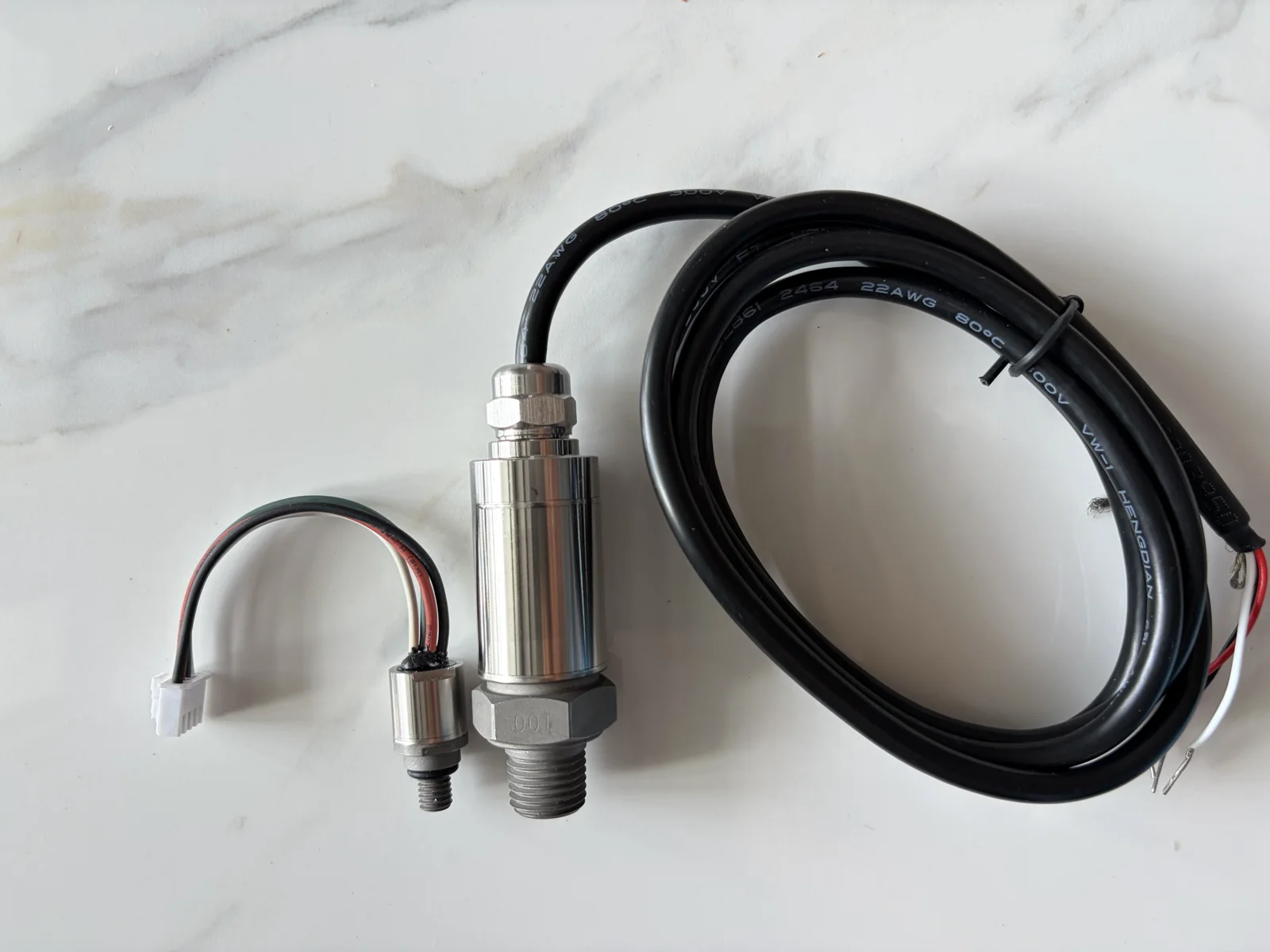

FQ3100 production transducer with cable output.
- ▶General OEM integration and industrial machinery
- ▶Water supply and process control systems
- ▶Refrigeration equipment
- ▶Compact installations with limited space
- ▶Pressure instruments and test benches
For gas-service, oil & gas, or hazardous-location projects, review FQ4401 Pressure Transducer for Selected Hazardous-Environment Projects.
Performance
- Accuracy
- ±0.25% BFSL max
- Stability
- ±0.25% FS/year, typical
- Pressure Cycles
- >100 million full-scale cycles
Range
- Min Range
- 0–2 bar / 0–25 psi
- Max Range
- 0–700 bar / 0–10,000 psi
- Overrange
- 2× rated pressure
Environmental
- Operating Temp
- -40 to 85°C
- Protection
- IP66
- EMC
- Protected
Mechanical
- Shock
- 100 g, 11 msec, ½ sine
- Vibration
- 10 g peak, 20–2,000 Hz
- Technology
- Monolithic stainless steel media-isolated sensing element
- ✓Compact stainless steel body (90 mm) for tight installations
- ✓Oil-free, weld-free, O-ring-free media-isolated design
- ✓Wide operating temperature: −40 to 85°C
- ✓Standard ranges from 0–25 to 0–10,000 psi; compound or vacuum configurations require factory review
- ✓Low static and temperature errors
- ✓Long-term stability: ±0.25% FS/year, typical
- ✓Wetted-material compatibility reviewed for each medium and operating condition
- ✓EMI/RFI shielded
The configuration code is a preliminary reference. Final range and unit compatibility, wiring, documentation, and availability are confirmed in the quotation.
Full Specifications
4–20 mA (2-wire)
1–5 VDC / 1–6 VDC
0–50 mV
0.5–4.5 V Ratiometric
Hydrogen & Fuel Cell
Selected 316L configurations can be evaluated for fuel-cell, hydrogen-storage, and distribution projects. Final suitability depends on the complete operating conditions.
Industrial OEM
Pressure sensors for integration into industrial machinery, hydraulic systems, and automated equipment. Compact form factors and multiple output options.
Refrigeration Equipment
Pressure measurement for refrigeration equipment, subject to refrigerant, lubricant, temperature, and wetted-material review.
Water & Process Control
Compact pressure transducers for water supply systems, fluid power, and general process control applications.
Ready to Order?
Share your pressure range, media, output, and process connection. We will help identify a suitable configuration for review and provide a quotation.
